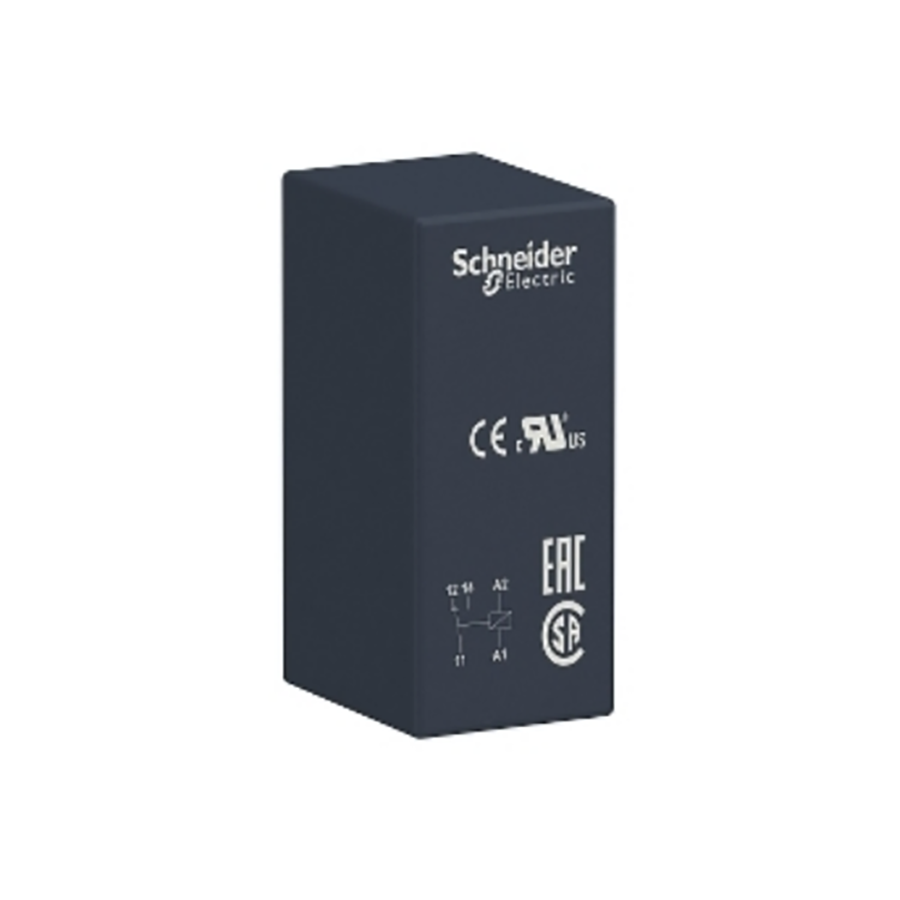

RSB1A120F7
Manufacturer:
Schneider Electric
Mfr.Part #:
RSB1A120F7
Datasheet:
Description:
Power Relays Socketable 14.4 mA General Purpose
| Parameter | Value |
|---|---|
| Length | 84.2 mm |
| Width | 15.6 mm |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -40 °C |
| Height | 64.2 mm |
| Packaging | Box |
| RoHS | Compliant |
| Contact Material(Contact Finish) | Silver Nickel (AgNi) |
| Coil Current | 14.4 mA |
| Coil Type | Non-Latching |
| Relay Type | General Purpose |
| Operate Time | 20 ms |
| Release Time | 20 ms |
| Contact Current Rating | 12 A |
| Termination Style | Plug In |
| Switching Voltage | 250 V |
| Coil Voltage (AC) | 120 V |
| Must Release Voltage | 18 V |
